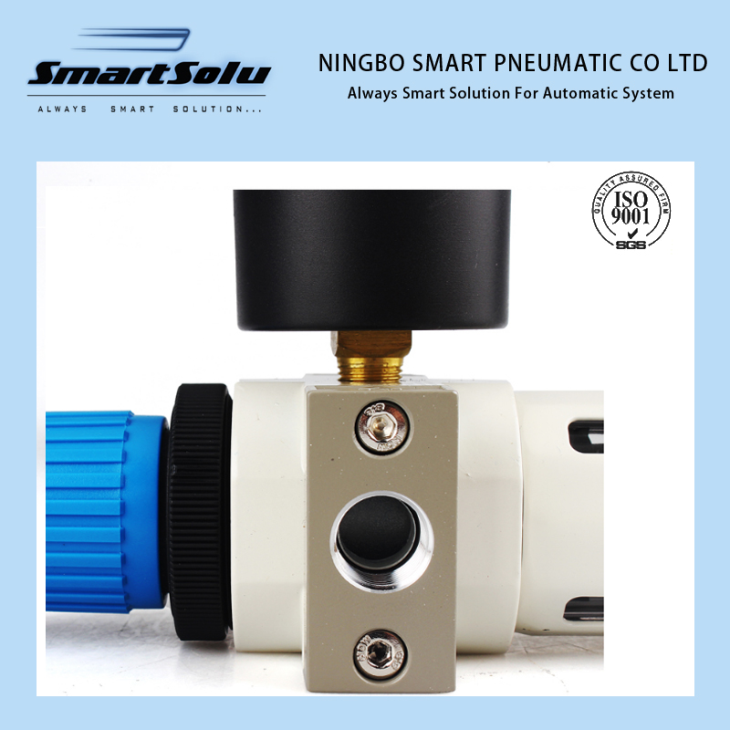

OFR Filter Regulator
Delivery, we always have some products in stock, so we can complete the delivery within the time stipulated before.
Features:
OFR type filter regulator
It includes 2 parts: filter & regulator \
Auto Drain can be selected. All size have overflow function.
Model | MINI | MIDI | MAXI | ||||||
Manual Drain | Working Pressure: | OFR-1/8"-MINI | OFR-1/4"-MINI | OFR-3/8"-MINI | OFR-3/8"-MIDI | OFR-1/2"-MIDI | OFR-3/4"-MIDI | OFR-3/4"-MAXI | OFR-1"-MAXI |
Working Pressure: | OFR-1/8"--7MINI | OFR-1/4"--7MINI | OFR-3/8"--7MINI | OFR-3/8"-7-MIDI | OFR-1/2"-7-MIDI | OFR-3/4"-7-MIDI | OFR-3/4"-7-MAXI | OFR-1"-7-MAXI | |
Working Pressure: | OFR-1/8"-5M-MINI | OFR-1/4"-5M-MINI | OFR-3/8"-5M-MINI | OFR-3/8"-5M-MIDI | OFR-1/2"-5M-MIDI | OFR-3/4"-5M-MIDI | OFR-3/4"-5M-MAXI | OFR-1"-5M-MAXI | |
Manometer | 0-12bar | Y40-01 | Y50-02 | ||||||
0-7bar | |||||||||
Working Medium | Filtered compressed Air | ||||||||
Features of Structure | Sintered filter with water separtor; MINI/MID:Diaphragm type-regulator; MAXI:Piston regulator | ||||||||
Mounting Type | Pipe mounting or foot mounting | ||||||||
Assemby position | Vertical±5 | ||||||||
Connection | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | |
Standard Nominal Flow Rate | 12bar/40um | 750 | 1400 | 1600 | 3100 | 3400 | 3400 | 9000 | 10000 |
7bar/40um | 900 | 1500 | 1700 | 3400 | 3900 | 3900 | 9500 | 16000 | |
12bar/5um | 650 | 1200 | 1350 | 2400 | 2500 | 2500 | 7300 | 7600 | |
Working Pressure | 0.5-12 bar/0.5-7bar | ||||||||
Working Temperature | 0-60°C | ||||||||
Primary Pressure | 1-16 bar | ||||||||
Grade of filtration | 40um/5um | ||||||||
Max.Capacity | 22ml | 43ml | 80ml | ||||||
Recommended Oil | ISO VG32 or Equivalent Oil | ||||||||
Material | Housing:Zinc die-casting; Filter bowl and oil bowl:PC; | ||||||||
Where to be used:
Tips:
The OU consisted of OFR and OL,each unit can be ordered separately.
The OF with water separator cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.
The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.
FRL- Air Treatment Unit -OU (filter+regulator+lubricator)
