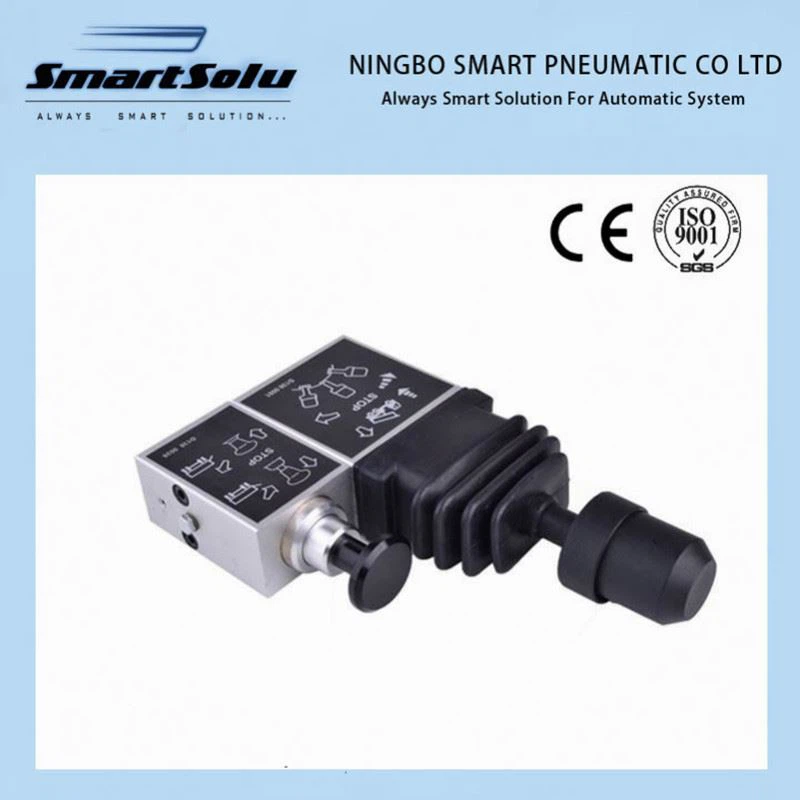

HYVA Dump Truck Air Control Valve
HYVA Dump Truck Valve 1475043H Double Acting Proportinal Air Control Tipping Valve Gas Pilot Solenoid Normal Temperature General
HYVA Dump Truck Air Control Valve
The HYVA dump truck air control valve is a specific type of control valve designed for controlling the pneumatic functions of a dump truck, such as raising and lowering the dump bed.
HYVA Dump Truck Valve 1475043H Double Acting Proportinal Air Control Tipping Valve Gas Pilot Solenoid Normal Temperature General
Type:ACCESS VALVES
Place of Origin:Zhejiang, China
Brand Name:SMT
Model Number:HYVA 1475043H
Application:General
Temperature of Media:Normal Temperature
Power:Solenoid
Media:Gas
Port Size:G1/8, G1/8
Structure:Pilot
Body Material:Aluminum
Seal Material:HNBR
Working Pressure:0.5-12 Bar
Ambient temperature:Ambient temperature
Working medium:Air
Working temperature:-40 - +80
Operating pressure(Bar):up to 12 BAR
Nominal diameter(mm):4mm
| Type | 1475043H |
| Color | Black |
| Operation pressure | 0.5-12 Bar |
| Operation temperature range | -40 - +80 |
| Metarial of body | Aluminium alloy |
| Material of oil seal | HNBR |
| Place of Origin | Zhejiang, China (Mainland) |
Supplier's Popular Products:
When selecting a HYVA dump truck air control valve, consider factors such as compatibility with the specific dump truck model and pneumatic system, the required airflow and pressure rating, and any additional features or functions needed for your application. It's important to consult with HYVA or their authorized distributors to ensure you choose the correct valve for your dump truck system.
Tips:
Q: What is your MOQ?
A: Standar type is 5pcs for MOQ, nonstandard type will check the drawing and reply you as soon as possible.
Q: What is your packing?
A: Each by one box packing.
Q: How to choose product?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
