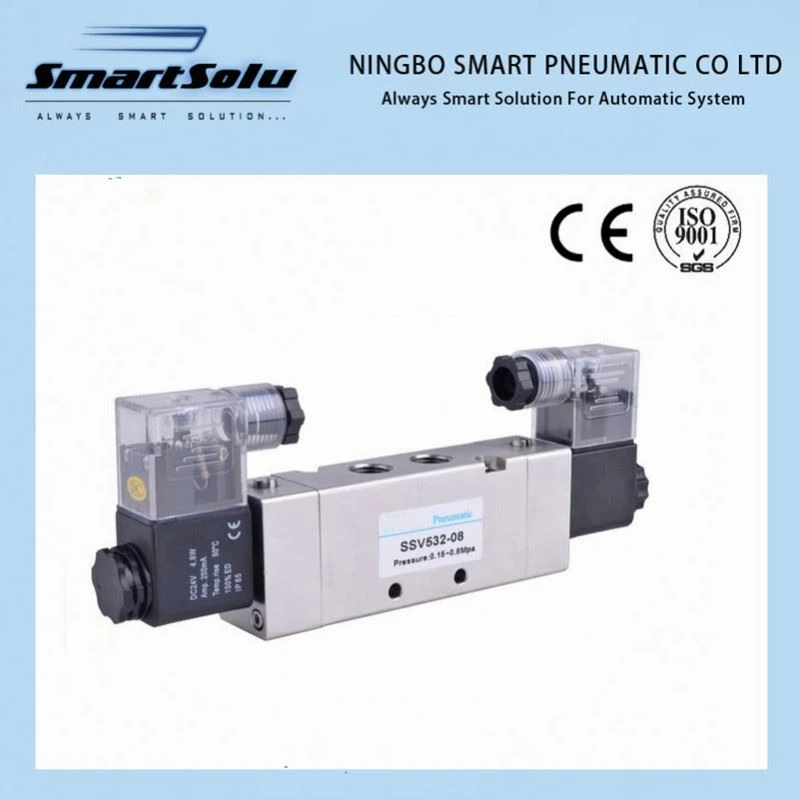

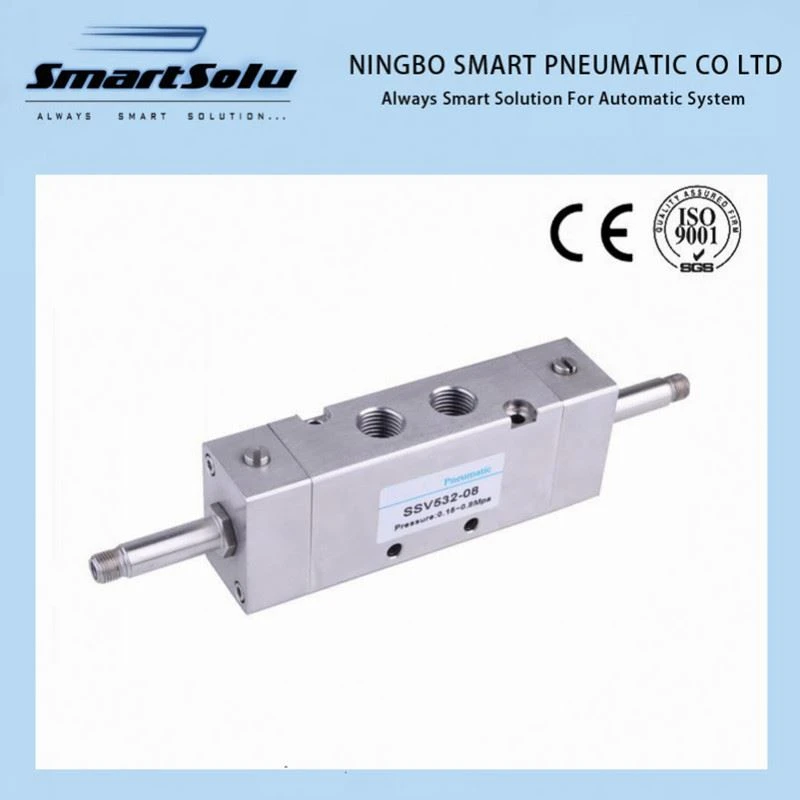

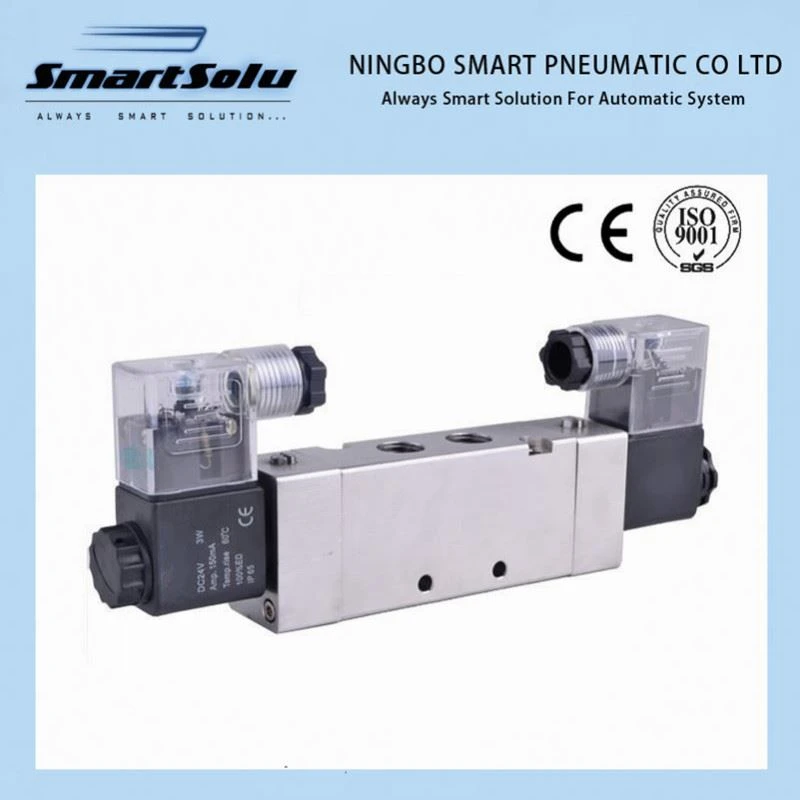

SSV Series 5/2 Way Solenoid Valve Stainless Steel

SSV Series 5/2 Way Solenoid Valve Stainless Steel DC24V SSV532-08 Standard Pilot AIR, Gas Normal Temperature Air Valves & Vents

The SSV Series 5/2 Way Solenoid Valve Stainless Steel is a specific type of solenoid valve commonly used in fluid control systems.

SSV532-08 catalogue:

SSV Series Stainless steel solenoid valve

Complete Stainless steel material ( Main body,Spool.Armature tube, Manual override )

For double operated actuators

Manual override with and Without detent

Compact design with large flow rate

Suitable for Critical environment. Low and high temperature.Dirty and pollution condition

Corrosion resistant. High temperature resistance.

Seal material : VITON

All valves available with ex protected coils ( ATEX and Other international approvals)

Type:Air Valves & Vents

Place of Origin:Zhejiang, China

Model Number:SSV521-08

Application:General

Temperature of Media:Normal Temperature

Power:Solenoid

Media:AIR, Gas

Port Size:G1/4"

Structure:Pilot

Standard or Nonstandard:Standard

Fluid:Air, Gas

Operating Temperature:-20~180°C

Orifice size:5mm, 6.5mm

Port connection:1/4,1/8,3/8,1/4

Working pressure:0.1~1.0MPa

Working Temperature:-20~180°C

Medium Temperature:-10~120°C

Flow:1200 L/min, 1700L/min

Switching time:35ms, 30ms

Supplier's Popular Products:

It's important to consider your specific requirements and consult with a supplier or manufacturer to ensure the SSV Series 5/2 Way Solenoid Valve Stainless Steel is suitable for your application. Factors to consider include fluid compatibility, pressure and temperature ratings, electrical specifications, and any certifications or standards required for your industry.
