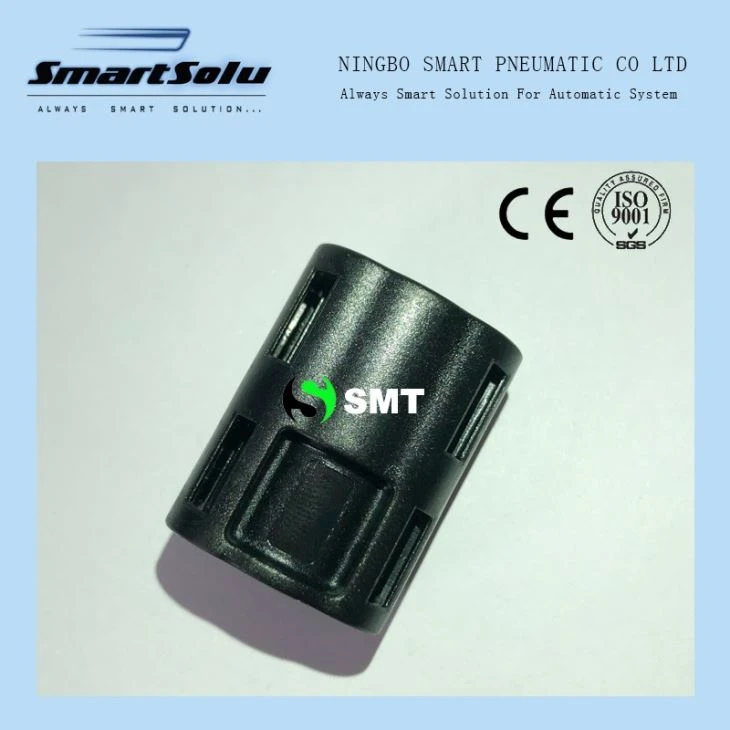

Divisible Duct Sealing A 12mm
The divisible seals for microducts provide a gas and watertight seal for open duct ends installed with air blown fiber. The seals are designed to be installed after the fiber or cable has been blown in to the microduct.
Features:
The seals are intended for standard micro cables or extra slim nano cables. They consist of two plastic shells and a cutting block that click together when mounting. A rubber seal is compressed and provides an efficient seal against water andgas.
• Highly water and gas tight
• For microducts from 5 to 25 mm
• For air blown fiber, nano cables or micro cables from 1.0 to12mm
• Retro-fit design
Dimensions:
Description | Duct outside diameter (mm) | Cable Diameter (mm) |
Duct seal 10mm / 3.5 > 2.5mm | 10 | 3.5-2.5 |
Duct seal 10mm / 5.0 > 3.5mm | 10 | 5.0-3.5 |
Duct seal 10mm / 6.5 > 5.0mm | 10 | 6.5-5.0 |
Duct seal 10mm / 8.0 > 6.5mm | 10 | 8.0-6.5 |
Duct seal 12mm / 3.5 > 2.5mm | 12 | 3.5-2.5 |
Duct seal 12mm / 5.0 > 3.5mm | 12 | 5.0-3.5 |
Duct seal 12mm / 6.5 > 5.0mm | 12 | 6.5-5.0 |
Duct seal 12mm / 8.0 > 6.5mm | 12 | 8.0-6.5 |
Duct seal 14mm / 2.5 > 1.5 mm | 14 | 2.5-1.5 |
Duct seal 14mm / 3.5 > 2.5 mm | 14 | 3.5-2.5 |
Duct seal 14mm / 5.0 > 3.5 mm | 14 | 5.0-3.5 |
Duct seal 14mm / 6.5 > 5.0 mm | 14 | 6.5-5.0 |
Duct seal 14mm / 8.0 > 6.5 mm | 14 | 8.0-6.5 |
Duct seal 14mm / 10.0 > 8.0 mm | 14 | 10.0-8.0 |
Duct seal 16mm / 2.5 > 1.5 mm | 16 | 2.5-1.5 |
Duct seal 16mm / 3.5 > 2.5 mm | 16 | 3.5-2.5 |
Duct seal 16mm / 5.0 > 3.5 mm | 16 | 5.0-3.5 |
Duct seal 16mm / 6.5 > 5.0 mm | 16 | 6.5-5.0 |
Duct seal 16mm / 8.0 > 6.5 mm | 16 | 8.0-6.5 |
Duct seal 16mm / 10.0 > 8.0 mm | 16 | 10.0-8.0 |
