Stainless Steel Acting Angle Seat Valve
Operating media:
Air,water,alcohol,oil,petroleum products,saline solutions,steam,etc.(as long as compatible with AISI 316 or bronze RG5)
Pressure from 0 to 16/25 bar(steam from 180℃,from 0-10 bar) depending on the size and model chosen.
Temperature from -10℃ to 180℃
Max.viscosity 600cst(mm²/S)
Control media
Driving media:compressed air,lubricated or dry,gas or neutral media.
Ambien temperature:-10℃ to 60℃
Stainless Steel Acting Angle Seat Valve
A stainless steel actuated angle seat valve is a type of valve that is commonly used in industrial applications to control the flow of fluids. It features a stainless steel body and is actuated by an actuator, which can be pneumatically or electrically operated.

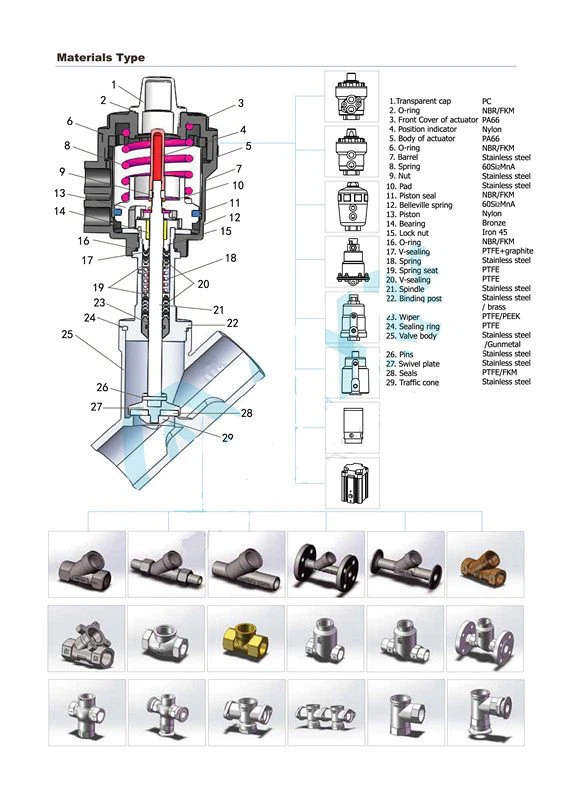

Gerneral Features:
Threaded ends,male thread+socket welded,weld ends,Flange ends,Tri-clamp ends,Gunmetal body thread ends,other types available on request.
Assembling is possible in all position:upright,flat or angled.
Range available from 3/8"to 4 in the double acting versions,spring return N.C. from above and below the seat,spring return N.O. from below the seat.
The variations in the actioning of the valve,the several combinations and the possibility to intercept the fluid from above or below the seat,originate multiple versions of the automatic valve.
On the basis of the kind of valve and the variations of pressure that must be intercepted,the necessary control pressure can be individuated,and consequently,the code for the corresponding valve.
Applications:
Air purification,chemical,textile,fabrication,food,pharmceutical,environmental protection and water tresting bear and beberage filling meachinery,frothing euqipment,etc.
Advantages:
Y type design,high flow rate.
Long life cycle,guarantee for 1 million times.
Stainless Steel Acting Angle Seat Valve
Stainless Steel Acting Angle Seat Valve
We will always try to give you smart solution for your automatic systems.
Smart Pneumatic Co., Ltd have a professional team, some of them have working experience in big pneumatic companies, like FESTO China SMC China, China AIRTAC, China EMC and etc, so we are familiar with their products and their supplying chain system.
In the future, Smart Pneumatic will continue follow the core concept "Always Smart Solution" to serives our customers; We will do more products and service innovation, create more value for customers, lift efficiency for their production..
Items of pneumatic components Available
countries exported to
patents for utility models
years experience
When selecting a stainless steel actuated angle seat valve, it is important to consider factors such as the valve size, pressure rating, temperature range, and compatibility with the fluid being controlled. Additionally, the choice of actuator type (pneumatic or electric) should align with the control system and operational needs of the application.
It is advisable to consult the manufacturer's specifications and guidelines for proper selection, installation, and maintenance of stainless steel actuated angle seat valves to ensure optimal performance and longevity.
