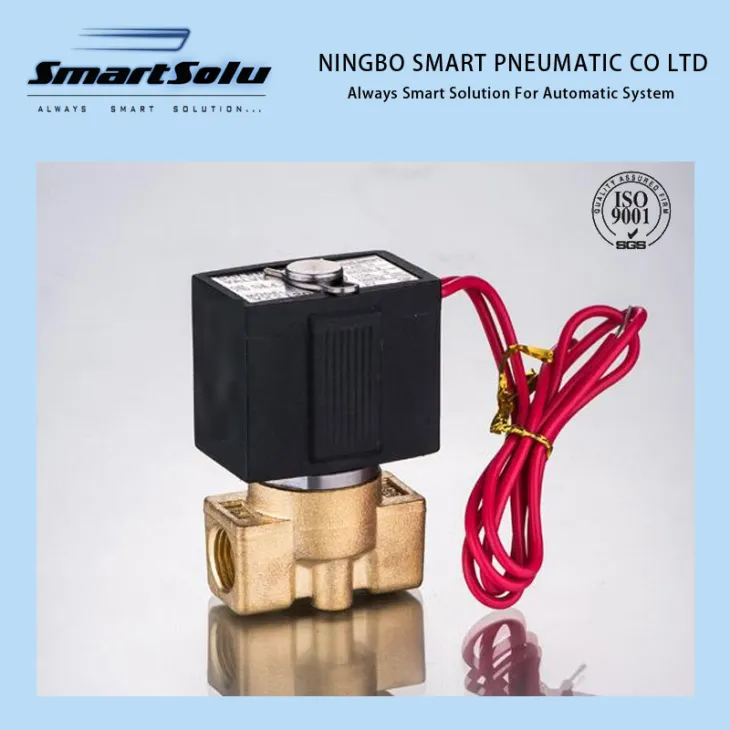

Direct Acting Solenoid Valve
Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage.
Features:
● The interface sizes of fluid medium valve range from 1MM to 50MM.
● Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage.
● Sealing material including NBR,EPDM,VITON,PTFE and so on.
● High flow valves for liquid, and air/inert gas service.
Description:
Model | VX2120-06-NO | VX2120-08-NO | VX2120-06 | VX2120-08 | VX2020-10 | VX2130-10 | VX2130-15 |
Working Medium | Air,Water,Steam,Gas | ||||||
Operation | Direct Acting Type | ||||||
Type | Normal Open | Normal Close | |||||
Working Pressure | 0~1.0Mpa | ||||||
Orifice Size(mm) | 2mm | 3mm | 10mm | 10mm | |||
Port Size | ZG1/8" | ZG1/4" | ZG1/8" | ZG1/4" | ZG3/8" | ZG3/8" | ZG1/2" |
Working Temperature Range | NBR for -5~90 and VITON for -5~150 | ||||||
Sealing Material | NBR or TON | ||||||
