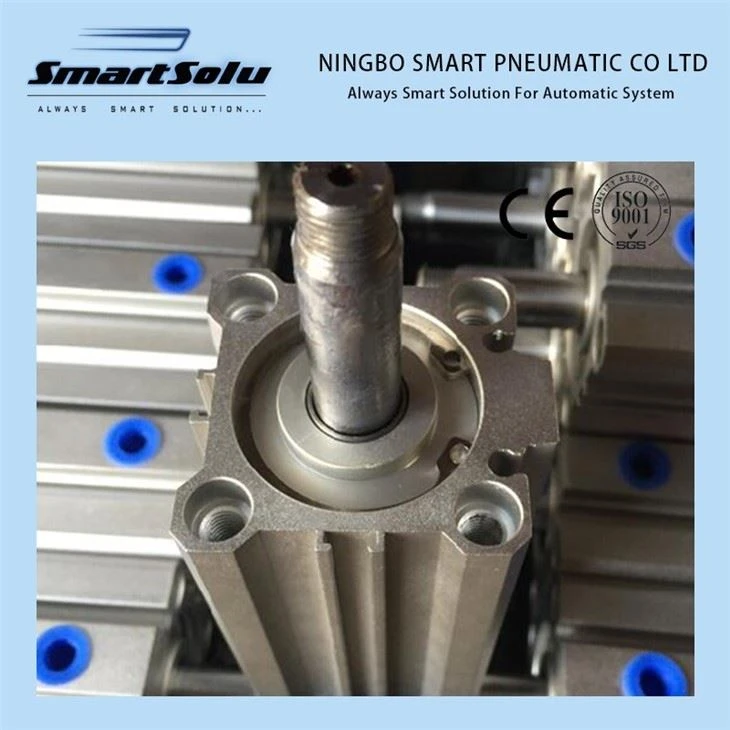

Sda Auminium Alloy Cylinder

Our sda cylinder is a compact type air cylinder, can save installation space, and has high cost performance!

Sda Auminium Alloy Cylinder

Basic Info:

1.Very wide used in the automation field, especial in Europe market.

2.Normally bore size: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm.

3.With self-lub bearing, the piston rod is lubrication free. And the adjustable air cushion keep the cylinder operating soomthly, safely and quietly.

4.Easier and various mounting via female threads or mounting accessories.

Bore size (mm)	16	20	25	32	40
Action	Double acting type
Fluid	Air(filtered through 40µ filter element)
Operating pressure	0.1~0.9 MPa(1~9kgf/cm²)
Proof pressure	1.35 MPa(13.5kgf/cm²)
Ambient and fluid temperature	-5~70°C
Cushion	Without cushion
Port size	M5	1/8''
Body material	Stainless steel

Where to be used:

Supplier's popular products:

Hexagonal hole thru allows for easy access in tight spaces with an hex Allen wrench

Fittings are extensively tested under vibration for leaks at 10kg/cm2 (140 psi)

Specially design inner seal is capable to perform at temperature of up to 75 C

Hardened Stainless Steel Lock Claw provides extended lifetime and performance

Customized release sleeve color: black, blue, red, grey, orange, green

Certification: GB/T 19001-2016/ ISO 9001-2015
