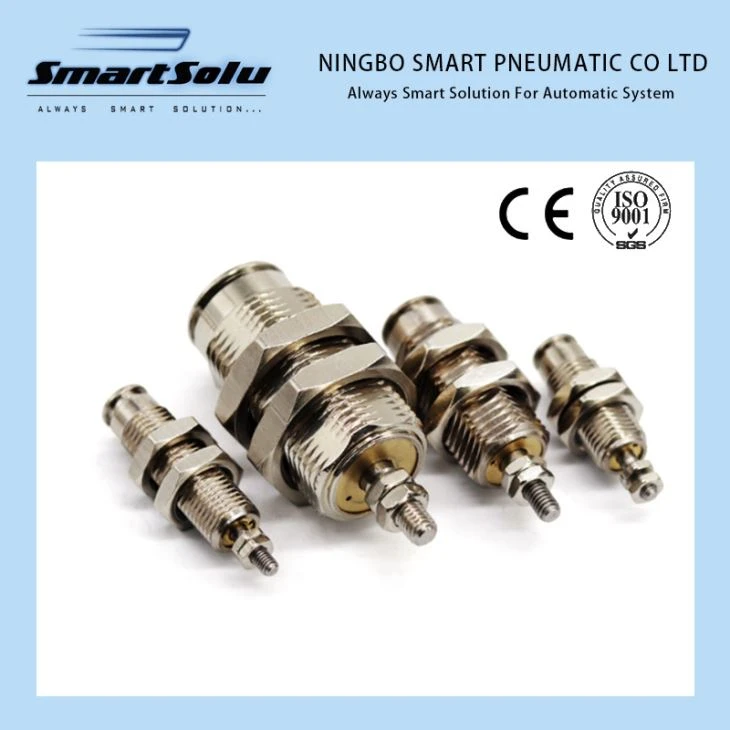

SMC Type CJPB Pneumatic Needle Cylinder
SmartSolu CJPB series needle cylinder has compact structure,small volume,light weight and space saving.
The working principle of SMC Type CJPB Pneumatic Needle Cylinder is that when the piston moves to the right under the push of compressed air, the gas in the right chamber of the cylinder is discharged through the holes in the plunger hole and the cylinder head. When the piston moves near the end of the stroke, the buffer plunger on the right side of the piston blocks the plunger hole. When the piston continues to move to the right, the remaining gas in the right chamber of the cylinder is sealed.and compressed.
Specification:
How to order:
Main Dimensions:
Where to be used:
Tips:
1. CJPB needle cylinder is simple and dexterous, with various types and threaded piston rod.
2. Needle cylinder is small in size, light in weight and space-saving. It has two choices: single-acting and double-acting.
3. Needle-type single-acting cylinder has two types: plug-in cylinder and panel-mounted cylinder, with direct piping.
4. The needle cylinder is simple and practical, and it is suitable for narrow space.
