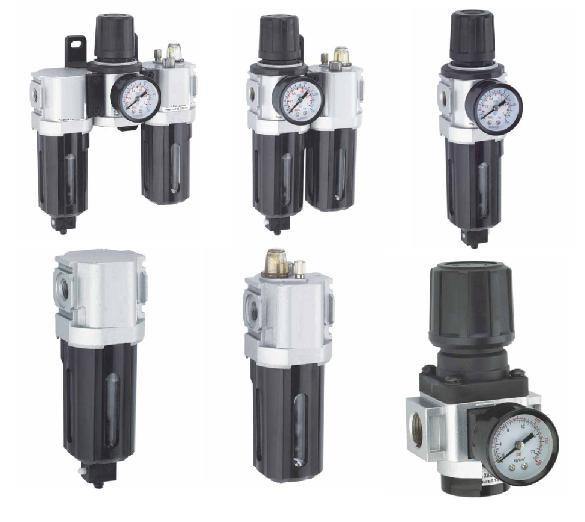

Mindman Style F.R.L

Recommended Lubricating Oil: Turbine Oil ISO-VG32

Mindman Style Filter Regulator Lubricator Features

Bore Sizes: 8A, 10A, 15A

Operating Pressure: 0 to 15 kgf / cm-2

Regulating Pressure range:

Standard type: 1 to 8.5 kgf/cm-2

High Pressure type: 1 to 15 kgf/cm-2

Filtration: 40 mu m

Lubricating Oil Capacity: 200 c.c.

Recommended Lubricating Oil: Turbine Oil ISO-VG32

Attachment: Pressure Gage, T-Type Bracket

Components	MAFR300, MAL300
Bore No.	8A,10A
Port size	1/4, 3/8
Medium	Air
Operating pressure range (※)	0.05~1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	Standard:5μm Option:40μm
Lubricating oil capacity	55c.c
Min. flow for oil drip	50 l/min,60 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Attachment	Pressure gauge (PG-40), T-type bracket
Weight	724 g

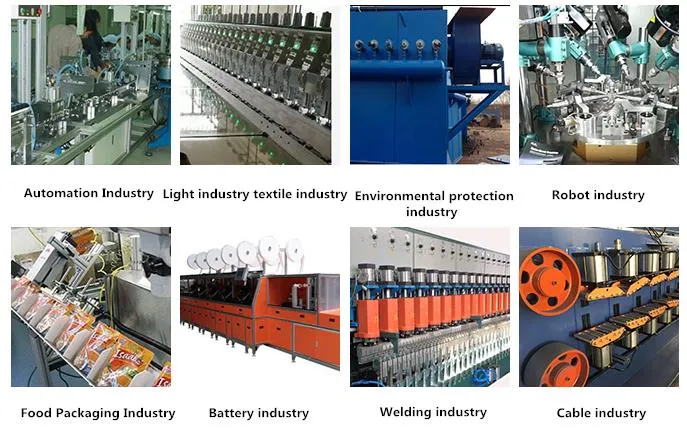

Where to be used:

Why choose us?

(1)We can do the designs according to customers’ requirements.

(2)We can open customers’ own mold as per their requirements.

(3)We can offer you a good after-sell service.

(4)Prompt delivery.

(5)Small order is welcome, the MOQ of standard one is 1 pc.

Hot Tags: mindman style F.R.L, China, manufacturers, suppliers, factory, customized, low price, made in China
