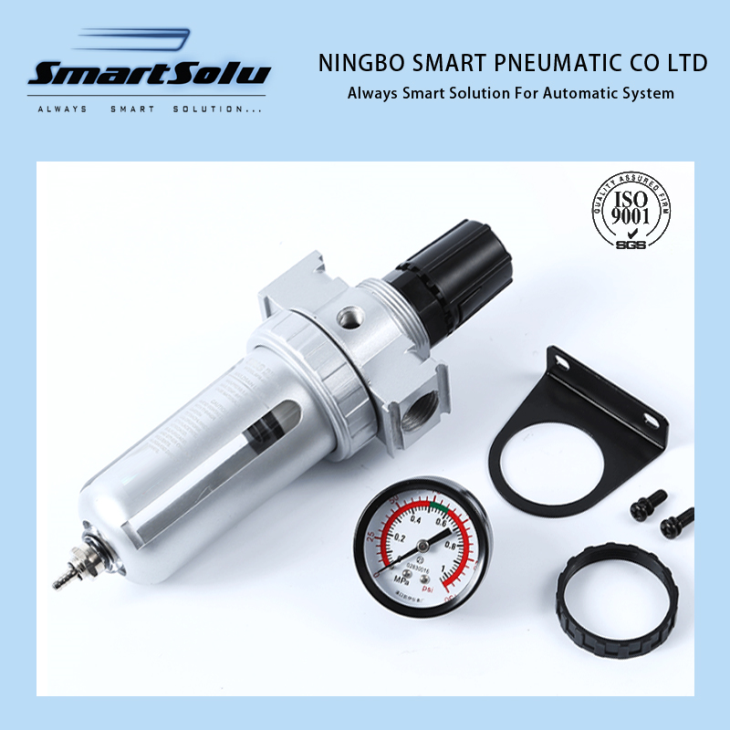

Sunlise Type F.R.L
Pneumatic Filter Air Source Treatment. to reduce pressure of air which come from air pressure machine, to provide pressue gauge clean and good air. Also with pressure gauge, a holder for holding air filter.
Sunlise Type Filter Regulator Lubricator Features:
Fluid: Air
Ambient & Fluid temperature: 5-60°C
Nominal filtration rate: 40uM
Body material: Aluminum alloy
Bowl: PC
Air filter/regulator: SFR seris
SFR series air lubricator * Rc(PT), G(PF) or NPT thread option.
Port size: 1/8", 1/4"
Easy to maintain and operate, long service life.
S series air treatment, widely used in pneumatic air system.
2 units air combination (F. R+L): SFC series
Air filter / regulator (F. R): SFR series
Air lubricator: SL series
Pull the relief valve and rotate it , then the compressed air pressure can be adjusted to the expired pressure gradd, and can make the pressure pulse balanced, press down the knob to lock it. Pneumatic Filter Air Source Treatment. to reduce pressure of air which come from air pressure machine, to provide pressue gauge clean and good air. Also with pressure gauge, a holder for holding air filter.
produc name | SFC200,300,400 |
product colour | Black, silver, champagne, transparent |
pressure range | 0~1.0Mpa |
Material | Aluminum, iron, copper |
Model | SFR 200 | SFR 300 | SFR 400 | |
Take over the caliber | PT1/4 | PT3/8 | PT1/2 | |
Working medium | Compressed air | |||
Guaranteed pressure resistance | 1.5Mpa | |||
Maximum adjustable pressure | 0.85Mpa | |||
Operating temperature range | 5-6℃ | |||
Filter aperture | 40 µm(conventional)or 5µm(custom made) | |||
Main accessories material | Body material | Aluminum alloy | ||
Cup material | PC | |||
Cup shield | Plastic | |||
Where to be used:
Tips:
1. The functions of the filter+regulator and the Lubricator are integrated in one unit.
2. Modular product structure, easy to assemble, compact structure and large flow.
3. Combination units can be pre-assembled for special applications.
4. Integrated security function, safe and reliable to use.
