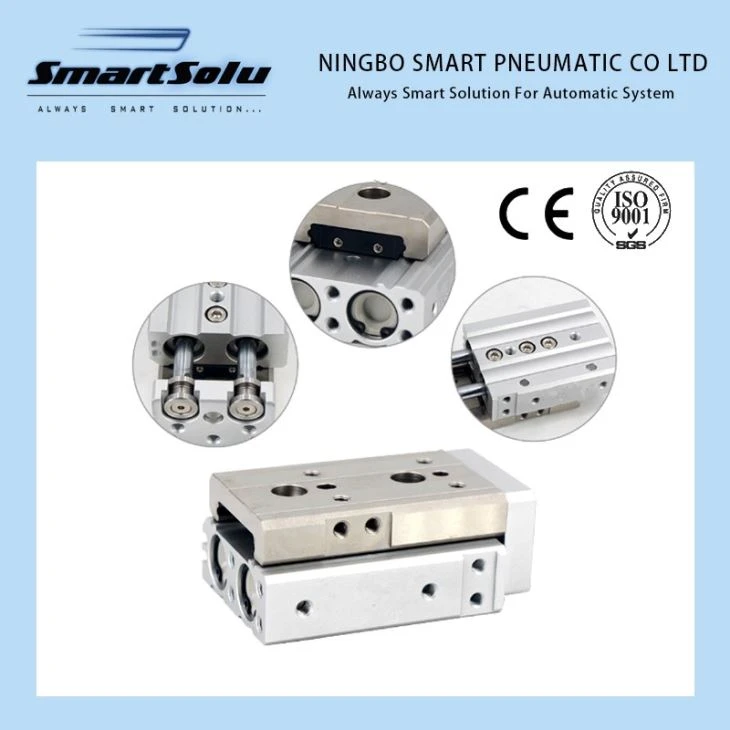

MXQ Series Slide Pneumatic Cylinder
MXQ series slide pneumatic cylinder, double cylinder design, 2 times output force, thin volume. The combination of the air cylinder and the working table camera reduces the overall size; the cross roller guide rail design is adopted, with small friction, no gap between the air cylinder and the working table, which is suitable for precise assembly; it can be installed from three sides. Built in magnetic ring, magnetic switch can be installed.
MXQ series slide pneumatic cylinder adopts double cylinder design, with 2 times output force and large load torque. Small size, solid, high precision. Combination of small cylinder and circular linear guide rail, with stroke adjusting device.
Ordering Code:
Specification:
Main Dimensions:
Tips:
1. MXQ series slide pneumatic cylinder has the advantages of small size, firmness and high precision.
2. Combination of small cylinder and circular linear guide rail, parallelism: 30 μ m, perpendicularity: 50 μ M.
3. MXQ series slide pneumatic cylinder adopts double cylinder design, with 2 times output force and large load torque.
4. SMT MXQ series slide pneumatic cylinder has adjustable stroke.
5. The air cylinder of the sliding table has its own mounting groove, and the air cylinder of the sliding table is attached with magnetism, and the magnetic switch can be installed.
