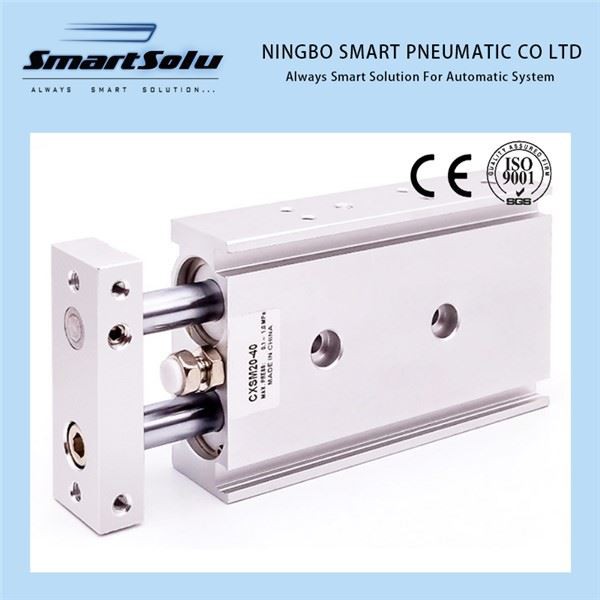

Small Pneumatic Cylinder

Our small pneumatic cylinder has spray painted cylinder head and internal hard anodized cylinder body!

Send Inquiry

Small Pneumatic Cylinder

A small pneumatic cylinder is a compact device that converts compressed air power into mechanical motion. These cylinders are widely used in automation, robotics, and various industrial applications where space is limited or where low force and short strokes are required.

Basic Info:

1) Our Small pneumatic cylinder normal bore size from 8mm to 25mm.

2) Mounting dimension is according to SMC standard.

3) Provided with adjustable buffer on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.

4) Single or double piston rod ends available

5) With self lubricating bearing,the piston rod is lubrication free.

6) Magnet and sufficient fixing style are available.

7) Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.

Bore (mm)	32	40	50	63	80	100
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT2/1
Action	Double Action, single rod/double rod
Working Fluid	Filtered Compressed Air
Working Pressure	0.05~1.0MPa
Proof Pressure	1.5MPa
Working Temperature	~10-70 °C
Cushion	Adjustable Cushion at bith ends
piston rod thread	M10X1.25	M14X1.5	M18X1.5	M22X1.5	M27X2

Our Feature→Advantage→Benefit

Key Advantage	Technical Innovation	Customer Value Proposition
Ultra-Slim Profile	Nano-precision piston rings (<2mm thickness)	Saves 40% installation space for micro-automation systems
Micro-Force Control	Integrated pressure feedback (±0.05N accuracy)	Enables delicate component handling with 25% yield improvement
High-Speed Response	Patented quick-exhaust valve (<15ms response)	Meets 200 cycles/min medical dosing requirements
Corrosion Resistance	Ceramic-coated rods (ISO 9227 salt spray certified)	Withstands biopharma cleanroom sterilization
Energy Efficiency	Low-friction seals (35% air consumption reduction)	Saves $4,800/year per 20-unit production line

Breakthrough Miniaturization

1,8mm minimum bore size (industry standard: 12mm)

2,85g lightweight design (30% lighter than competitors)

3,22% shorter length vs. ISO standard series

4,High cycle life cylinder, corrosion-resistant pneumatic components, low-power pneumatic solutions!
