Plastic Fiber Microduct Straight Coupler Connectors

Plastic Fiber Microduct Straight Coupler Connectors

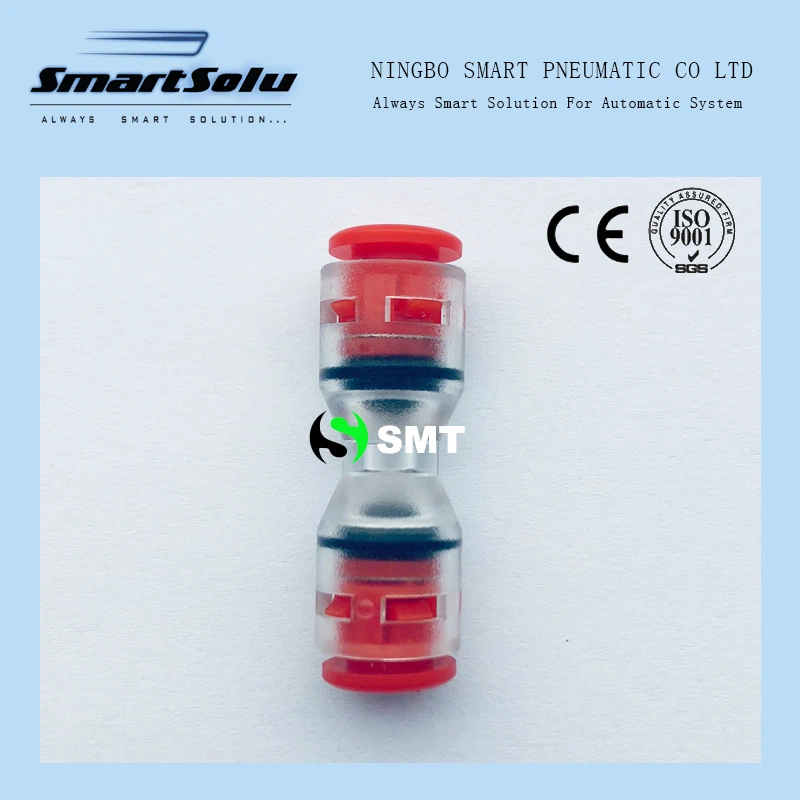

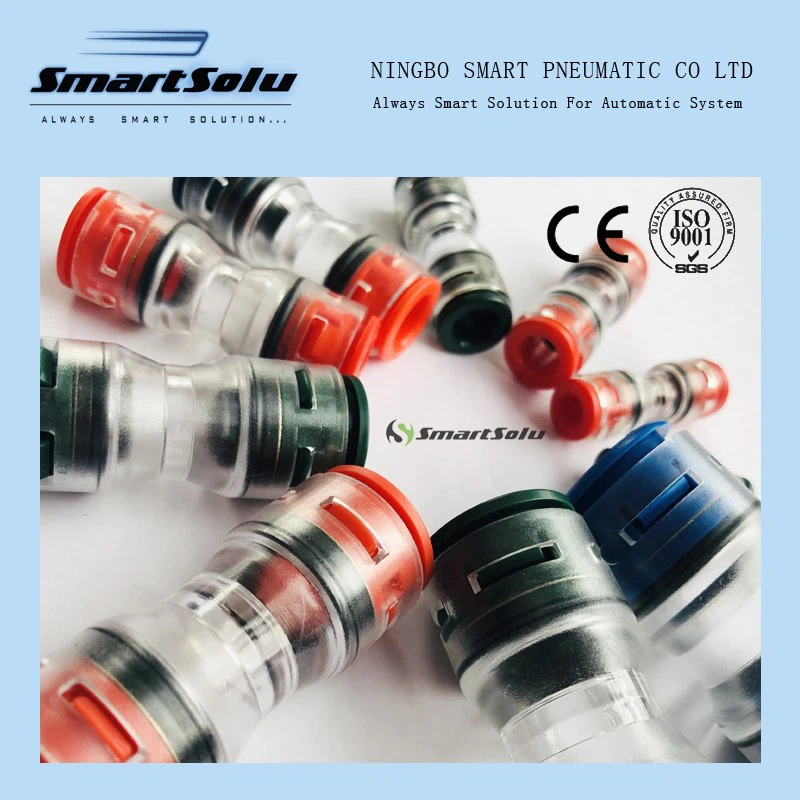

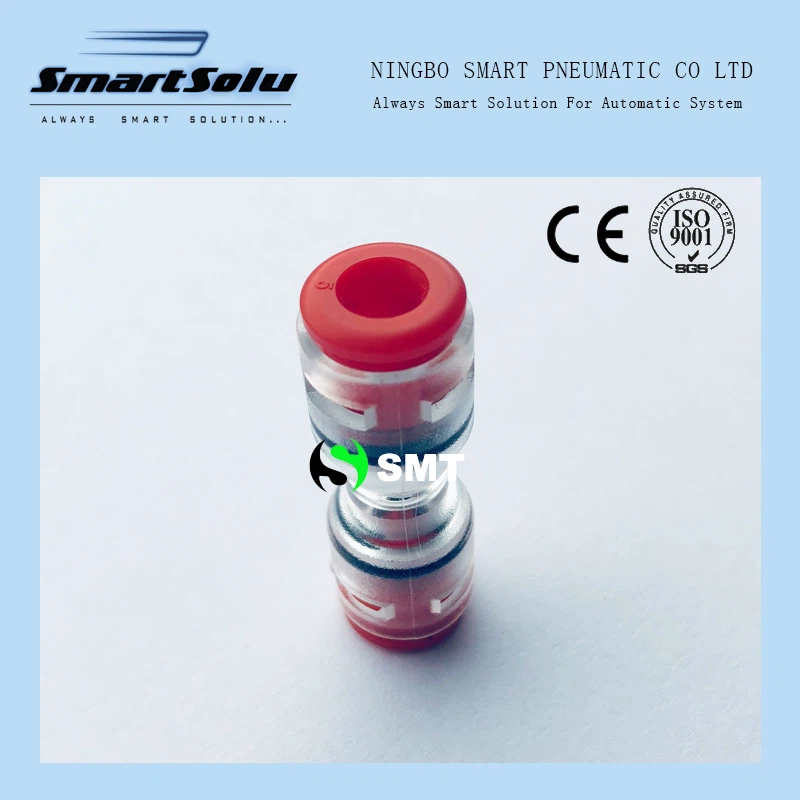

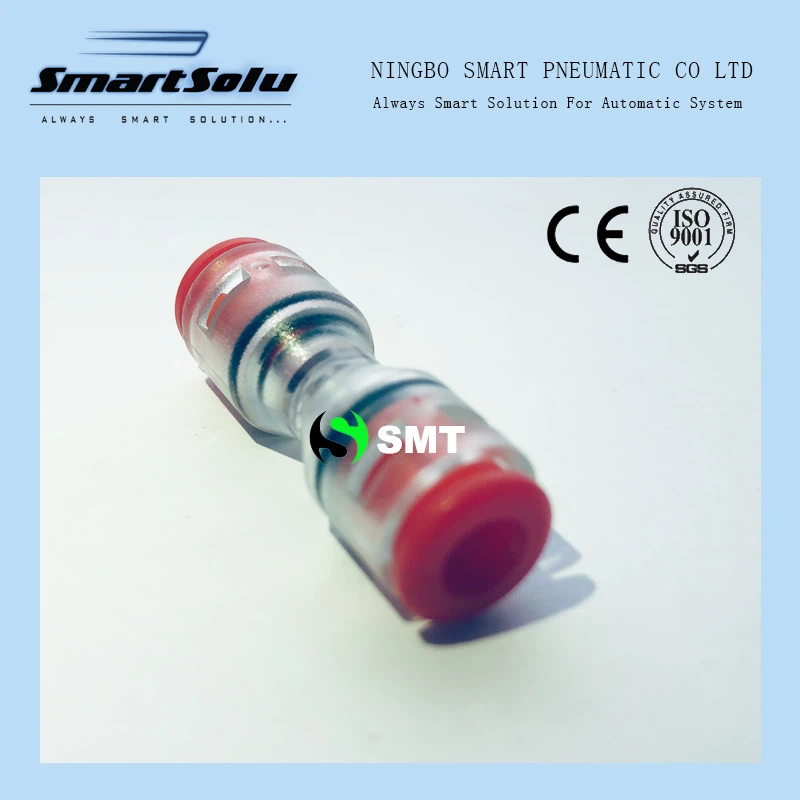

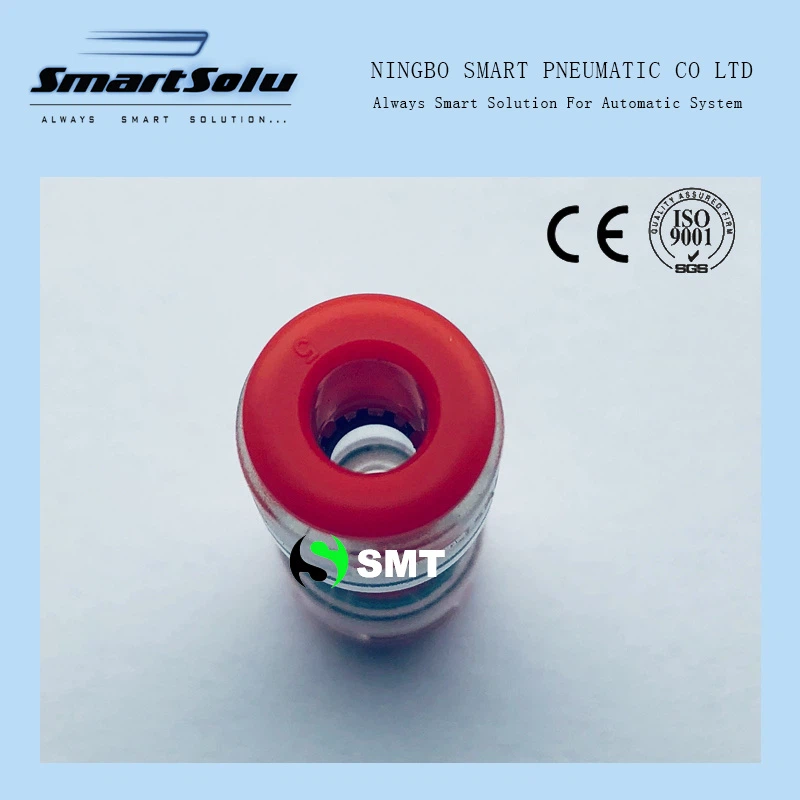

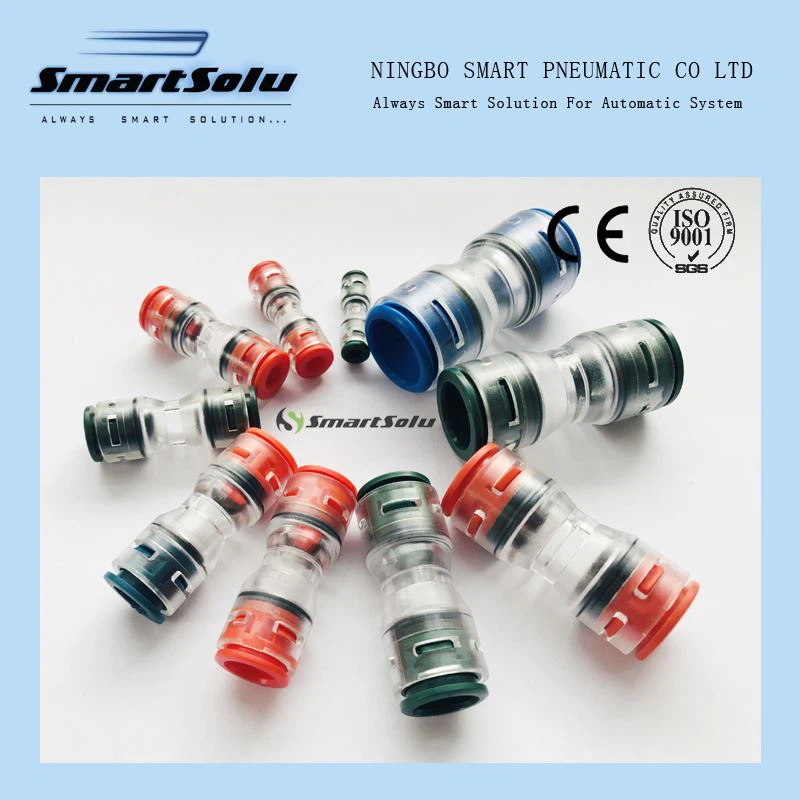

Plastic Fiber Microduct Straight Coupler Connector

Plastic fiber microduct straight coupler connectors are specialized connectors used in microduct systems for fiber optic cables. These connectors facilitate the connection and extension of microducts, allowing for the seamless transmission of optical signals through the microduct system.

Plastic fiber microduct straight coupler connectors are commonly used in telecommunications networks, data centers, indoor/outdoor installations, and fiber optic distribution networks. They provide a practical solution for connecting and extending microducts, enabling the efficient deployment and management of fiber optic cables in compact and high-density environments.

Please note that the specific design and specifications of plastic fiber microduct straight coupler connectors may vary depending on the manufacturer and the requirements of the microduct system.









Description

Plastic fiber microduct straight coupler connectors are specialized connectors used in microduct systems for fiber optic cables. Microducts are small-diameter plastic tubes designed to house and protect individual optical fibers or fiber bundles. The straight coupler connectors are used to join two microducts together in a straight line, allowing for the continuation or extension of the microduct system.

Specifications

Clear Connector for MicroDuct
Easy installation
can be connected and disconnected 10 times
Dark green,red, etc available


MicroDuct Coupler

Push-fit connectors make splicing MicroDuct fast and easy. Simply push the microtubes into the center of the coupling. No tools are needed. The coupling can be connected and disconnected up to 10 times, still maintaining the high performance requirements of the wind-blown installation system.

Push-in MicroDuct connectors operate at 15 BAR (218 psi) with a maximum allowable leakage rate of 1cc/min. This is equivalent to one bubble every three seconds. When higher pressures were used in the field, the leakage rate did not increase. The rapid explosion rating is 25 BARS (363 psi).

Feature:

Material:Clear PC

Leakage Pressure:15bar

Negative Pressure:-750mmHg(10 Torr)

Proof Pressure:25bar

Temperature Range:-10 ~ 60°C

For Tubing Type:PE, PU, Nylon, Polyurethane

Dimenssion:

Here are some key points about plastic fiber microduct straight coupler connectors:

1.Microduct systems: These connectors are specifically designed for microduct systems, which are commonly used in fiber optic installations where smaller, high-density cables are required. Microducts provide a compact and flexible solution for deploying and managing fiber optic cables.

2.Straight coupling: The connectors are used to create a straight connection between two microducts, ensuring a continuous path for the fiber optic cables. This allows for the seamless transmission of optical signals through the microduct system.

3.Plastic construction: Plastic fiber microduct straight coupler connectors are typically made of durable and lightweight materials such as high-density polyethylene (HDPE) or other suitable plastics. The plastic construction ensures resistance to environmental factors such as moisture, chemicals, and UV radiation.

4.Easy installation: These connectors are designed for easy installation, allowing for quick and efficient connections between microducts. They often feature a push-fit or snap-in mechanism, eliminating the need for additional tools or complex assembly procedures.

Size compatibility: The connectors are available in various sizes to accommodate different microduct dimensions. It is crucial to select the correct connector size that matches the microduct diameter to ensure a secure and proper fit.

Cable protection: By connecting microducts using straight coupler connectors, the integrity and protection of the fiber optic cables are maintained. The connectors help prevent damage, bending, or excessive strain on the cables, ensuring reliable signal transmission.

Plastic fiber microduct straight coupler connectors are widely used in telecommunications, data centers, and other applications where microduct systems are employed. They offer a practical solution for connecting and extending microducts, enabling the efficient deployment and management of fiber optic cables in compact and high-density environments.

Application

Plastic fiber microduct straight coupler connectors find application in various scenarios where microduct systems are utilized for fiber optic cable installations. Some of the common applications include:

1.Telecommunications networks: Plastic fiber microduct straight coupler connectors are extensively used in telecommunications networks for the deployment of fiber optic cables. These connectors allow for the seamless connection and extension of microducts, ensuring the continuity of fiber optic cable paths throughout the network.

2.Fiber to the Home (FTTH) installations: FTTH networks bring high-speed internet access directly to residential homes. Microduct systems, along with straight coupler connectors, are employed to route fiber optic cables from the main distribution point to individual homes. The connectors enable smooth connections between microducts, facilitating the expansion and maintenance of the FTTH infrastructure.

3.Data centers: Data centers require high-density and flexible fiber optic installations for efficient data transmission. Plastic fiber microduct straight coupler connectors are used to connect microducts within the data center infrastructure, allowing for the expansion or reconfiguration of fiber optic cable pathways as needed.

4.Indoor and outdoor installations: Whether it is an indoor or outdoor environment, plastic fiber microduct straight coupler connectors are suitable for various installation scenarios. They can be used in building backbones, campus networks, and even in harsh outdoor environments where protection from moisture, dust, and UV radiation is necessary.

5.Fiber optic distribution networks: Plastic fiber microduct straight coupler connectors play a vital role in distributing fiber optic cables in multi-dwelling units (MDUs), office buildings, and other similar settings. They enable the connection of microducts, allowing for the efficient routing of fiber optic cables to different floors or units.

6.Fiber optic cable repairs and expansions: In situations where repairs or expansions are needed in existing fiber optic installations, plastic fiber microduct straight coupler connectors provide a convenient solution. They allow for the joining of microducts, facilitating the repair or extension of fiber optic cable paths without significant disruption to the existing infrastructure.

Overall, plastic fiber microduct straight coupler connectors are essential components in microduct systems, enabling the connection and extension of microducts for fiber optic cable installations. They are widely used in telecommunications, data centers, and various other applications that require efficient and flexible fiber optic connectivity.
