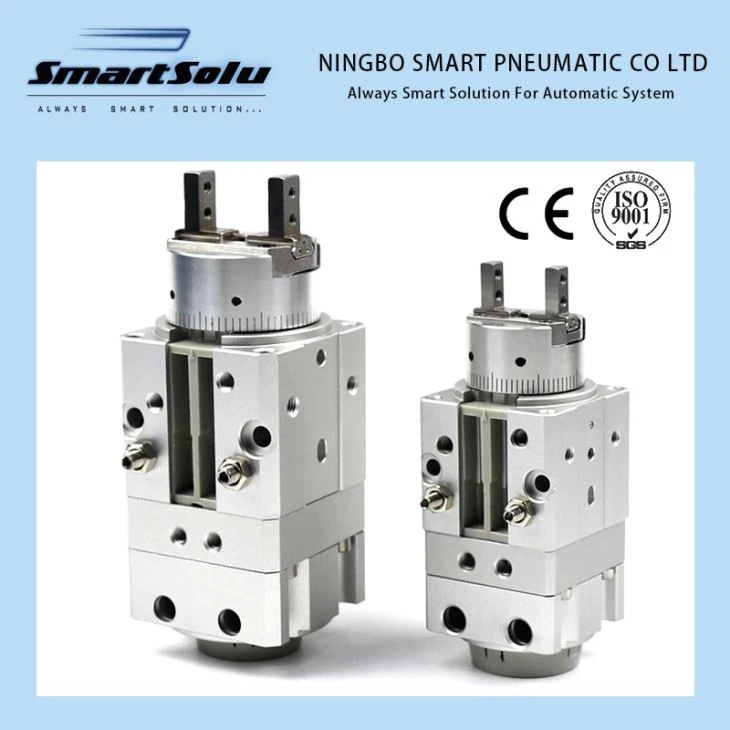

MRHQ Rotary Gripper Pneumatic Cylinder
Our MRHQ Rotary Gripper Pneumatic Cylinder has high quality and good price.
Feature:
1.Gripper Inside Diameter/Size: ø10, ø16, ø20, ø25
2.Rotary gripper suitable for holding and reversing workpieces on transfer lines
3.Compact integration of gripping and rotating functions
4.Eliminates the rotating deflection of piping and wiring caused by the combination of equipment (rotary table + adapter + air gripper)
5.Longitudinal dimension reduced by approx. 20% compared with the combined product
6.2 standard rotation angles of 90° and 180°
7.Equipped with standard magnet for auto switch retrofitting
Specification:
| Model | MRHQ10 | MRHQ16 | MRHQ20 | MRHQ25 | ||
| Fluid | Air | |||||
| Operating pressure (Mpa) | Rotary unit | 0.25~0.7 | 0.25~1.0 | |||
| Gripper unit | Double acting | 0.25~0.7 | 0.1~0.7 | |||
| Single acting | 0.35~0.7 | 0.25~0.7 | ||||
| Rotation angle | 90° ±10°, 180° ±10° (Both ends of vibration ±5° adjustable) | |||||
| Gripper action | Double acting, Single acting | |||||
| Finger opening/closing repeatability | ±0.01mm | |||||
| Gripper maximum operating frequency | 180 c.p.m | |||||
| Ambient and fluid temperature | 5 to 60°C | |||||
| Adjustable rotation time range * | 0.07 to 0.3 s/90° (at 0.5 MPa) | |||||
| Allowable kinetic energy | 0.0046 J | 0.014 J | 0.034 J | 0.074 J | ||
| Rotary unit | Rotary unit | Solid state auto switch (2-wire, 3-wire) | ||||
| Gripper unit | Solid state auto switch (2-wire, 3-wire) | |||||
