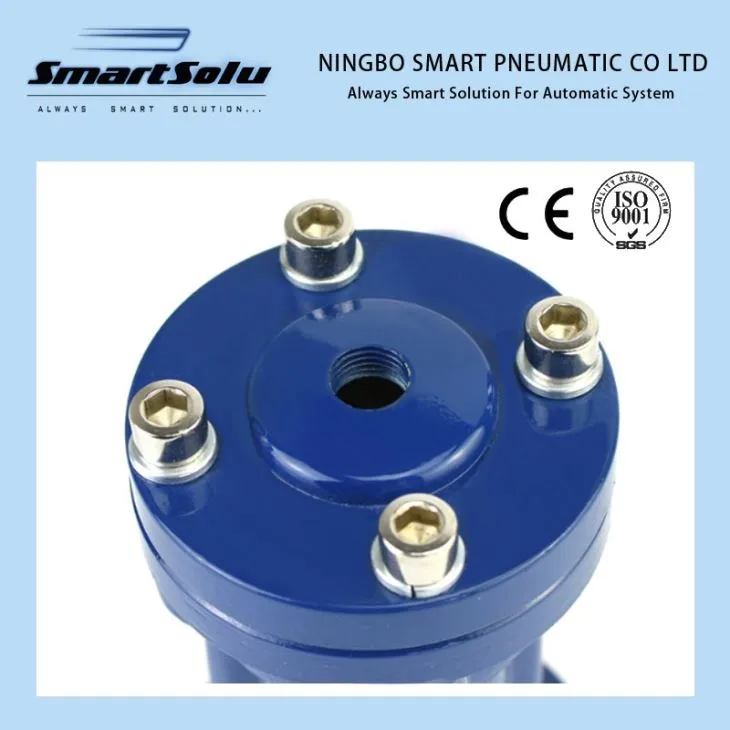

First Generation Air Hammer
• Single-impact type, each action produces a shock wave
• High strength aluminum alloy hardening treatment, light weight
• Impact and shock interval should be adjusted according to demand
There is a strong magnet inside the hammer, before the action of the magnetic hammer with the magnetic sheet tightly ,when the air pressure is greater than the suction pressure, the magnetic hammer is separated from the magnetic disk ,the downward impact produced strong impact .After the impact, the return spring will return the magnetic hammer to its original position, and it will be absorbed again with the magnetic sheet
Product features
The main characteristics are:magnetic impact of large powder falling effect;air consumption,low operating cost,energy-saving effect is good,percussion interval adjustable;quality,reliable,low failure rate;structure is simple,easy removal;innovative designs,chic;piston impate resistance,(can be customized explosion proof).Widely used in pesticides,pharmaceuticals,chsmicals,cement,dyes,pigments,food,electronics,building materials,mining,environmental protection and other industries,is powerful powder preocessing line auxiliary equipment.
The air hammer output can be used only for a small range for a single impact, the least impact on other equipment ,the impact will not cause the high moisture content of raw materials to have water precipitation or mixture of raw materials for the separation ,it commonly used in tank cleaning, pipeline clogging or elbow, high water content or mixed raw materials or low proportion of material tank
| First generation air hammer | Working pressure | Strike period | Air consumption | Impact force | Corresponding hammer | Weight |
| Model | Mpa | Times/Min. | L/time | N.M | Pound | Kg |
| SX-30 | 0.3～0.7 | 1～30 | 0.05～0.15 | 5.5～13 | less than 1 | 1.25 |
| SX-40 | 0.3～0.7 | 1～25 | 0.15～0.35 | 9.5～22 | 1～1.5 | 2.2 |
| SX-60 | 0.4～0.7 | 1～20 | 0.30～0.55 | 20～49 | 1.5～3 | 5.35 |
| SX-80 | 0.4～0.7 | 1～15 | 0.40～1.30 | 55～110 | 3.0～5.5 | 11.2 |
| SX-100 | 0.4～0.7 | 1～10 | 0.85～1.60 | 100～220 | 7.5～12 |
| First generation air hammer | H | C | B | A | D | Inlet | Exhaust |
| Model | mm | mm | mm | mm | mm | G | G |
| SX-30 | 9 | 67 | 82 | 135 | 16 | 1/8 | 1/8 |
| SX-40 | 11 | 75 | 98 | 175 | 18 | 1/4 | 1/4 |
| SX-60 | 15 | 105 | 142 | 220 | 20 | 1/4 | 1/4 |
| SX-80 | 17 | 140 | 170 | 275 | 25 | 3/8 | 3/8 |
| SX-100 | 17 | 150 | 195 | 310 | 25 | 3/8 | 3/8 |
